Reverse engineering classic car parts is one of our most popular services. When a part is discontinued, finding a replacement can be nearly impossible. That's where 3D scanning comes in.
Step 1: 3D Scanning the Original Part

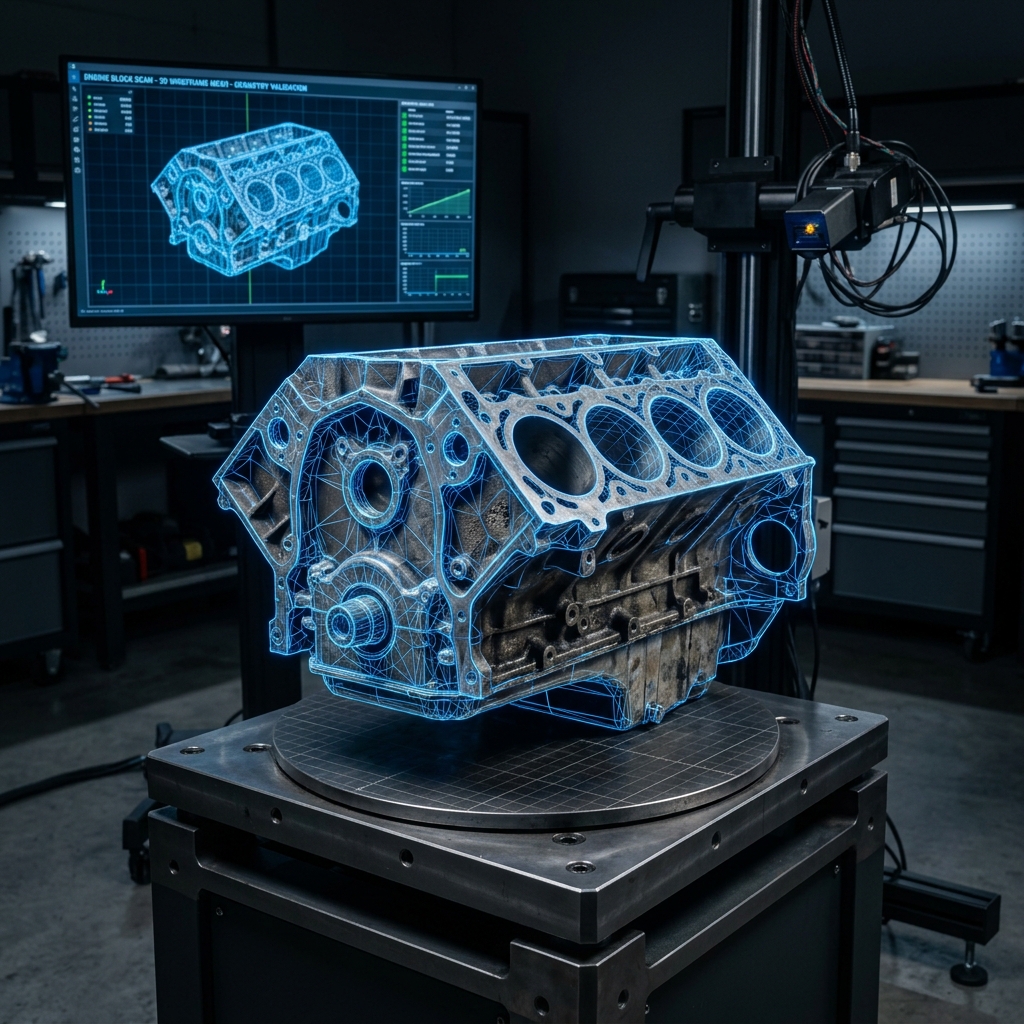

First, we take the original, broken, or worn-out part and scan it using our high-precision blue light 3D scanners. This captures the exact geometry of the part down to 0.001 inches.
Step 2: CAD Reconstruction
Once we have the raw scan data (the mesh), our engineers import it into SolidWorks. We don't just "wrap" the mesh. We actually rebuild the part parametrically. This means we create perfect cylinders, flat planes, and exact hole placements, correcting any wear or damage from the original part.
Step 3: Manufacturing

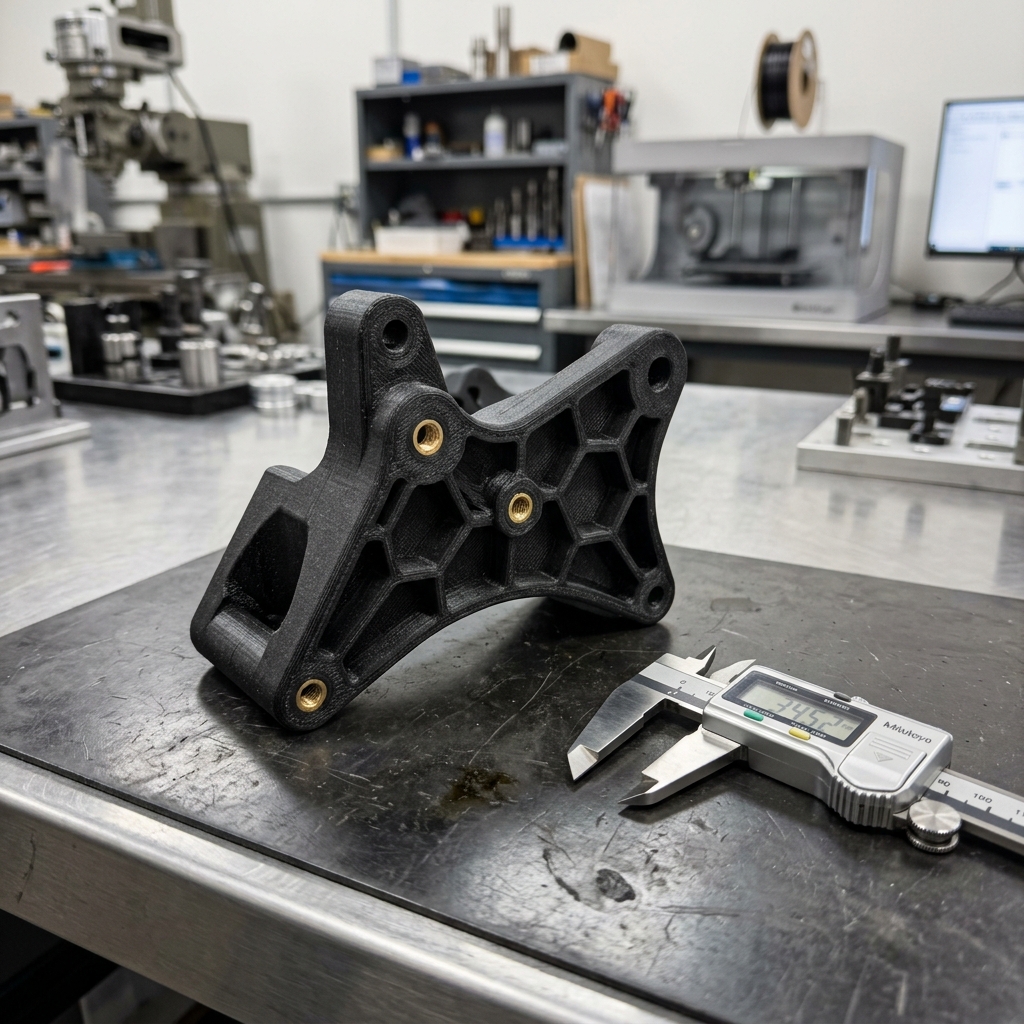

With a perfect CAD model, we can now manufacture the part. For a dashboard bracket, we might use 3D Printing (like strong carbon-fiber filled Nylon). For a mechanical engine component, we would use CNC Routing to machine it out of solid aluminum.
Conclusion
By using modern technology, we can revive classic cars and keep them on the road. If you have a discontinued part, contact us today for a free evaluation!
